Folding mechanism

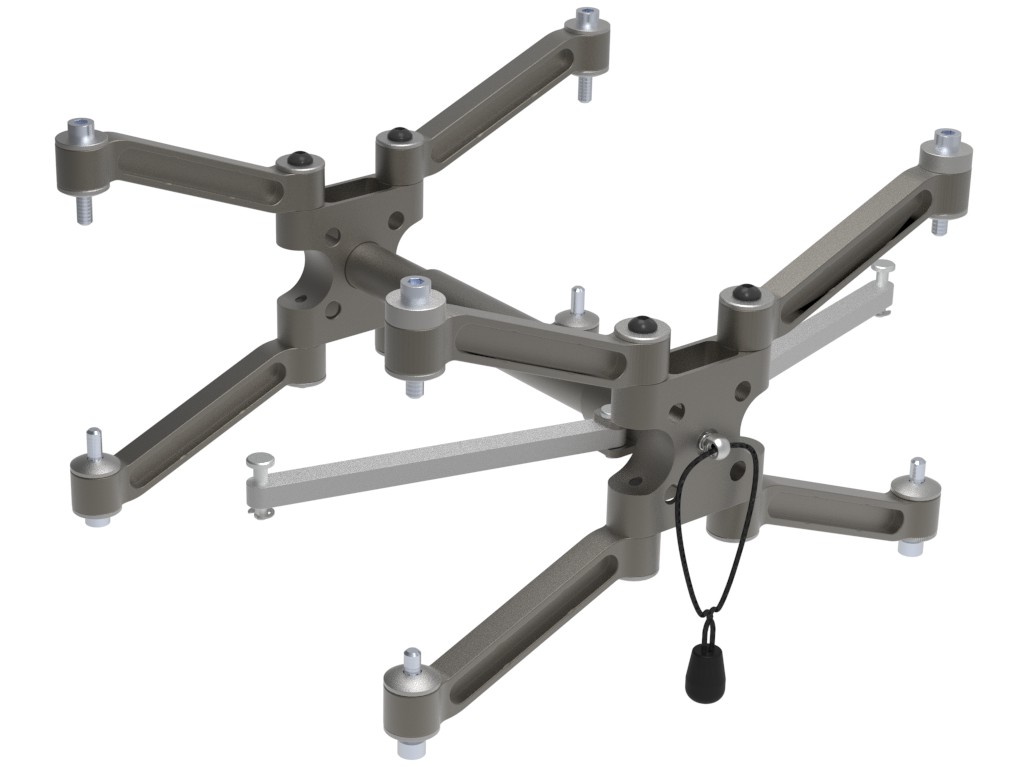

Folding mechanism Classic, assembled

completely assembled, with fastening screws, spacers and pins, prepared for installation for installation in the frame side parts. SB: ___cm

€886.30*

Item number: E8030100100-K

Details

Centre section folding mechanism 40mm for uneven seat widths

for SB: cm complete with 8 fixing screws M6x35 ISO 7380 2x pin (19mm) 2x lock washer DIN 6799 stainless steel 8x pivot point HD for folding arm 6mm Please note: Tighten the M6 fastening screws to a tightening torque of 12 Nm! When converting a standard folding mechanism to a heavy-duty version, 8 pivot points for heavy-duty centre tube (8030102057) are required.

€454.00*

Item number: E8030110113

Details

Centre section folding mechanism 50mm for even seat widths

for SB: cm complete with 8 fixing screws M6x35 ISO 7380 2x pin (19mm) 2x lock washer DIN 6799 stainless steel 8x pivot point HD for folding arm 6mm Please note: Tighten the M6 screws with a tightening torque of 12 Nm!

€454.00*

Item number: E8030110114

Details

Pivot point Ø6 x 20mm

Folding arm mounting on the centre section

€11.00*

Item number: E8030110127

Details

Pivot point M6, 16mm, SW 6

Folding arm attachment on the frame side panel from model year 2010

€9.80*

Item number: E8030110126

Details

Pivot point Ø6 x 16mm

Folding arm mounting on centre section and frame side section up to 2009

€11.00*

Item number: E8030110120

Details

Pivot point Ø7,5mm x 16mm

Folding arm mounting on frame side panel up to 2009

€11.00*

Item number: E8030110121

Details

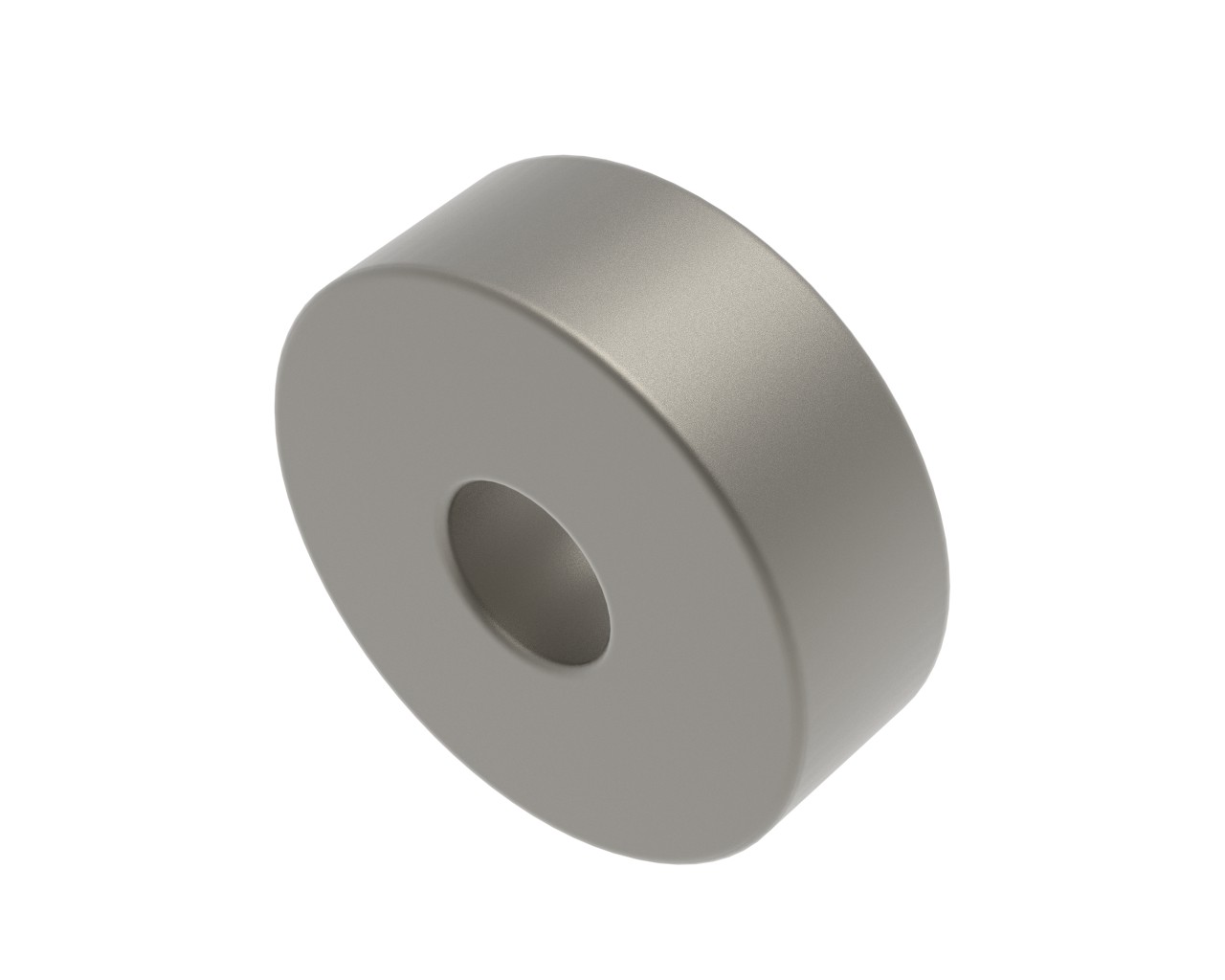

Precision spacer disc 7mm

€7.00*

Item number: E8030110123

Details

Precision spacer disc 2mm

€7.00*

Item number: E8030110122

Details

Pin [19mm] with locking disc

for mounting the S-brace on the frame side panel

€3.30*

Item number: E8030110135

Details

Pin [23mm] with locking disc

for mounting the S-brace on the frame side panel

€3.30*

Item number: E8030110136

Details

folding arm

incl. fixing screws M6x35

€79.80*

Item number: E8030110125-K

Details

S-strut for Traveler "Classic" series

incl. fixing material

€41.40*

Item number: E8030110128-K

Details

Classic folding arm attachment on the frame side panel

consisting of: M6x35 screws: 8 pieces Spacers 7mm: 2 pieces Spacers 2mm: 6 pieces When replacing a single screw, we recommend replacing all fastening screws.

€24.90*

Item number: E8030110130

Details

Folding arm attachment on the Classic and Ergo

consisting of: M6x35 screws: 8 pieces When replacing a single screw, we recommend replacing all fastening screws.

€8.40*

Item number: E8030110132

Details

Stainless steel balls Ø 4mm for locking mechanism central tube

1 set corresponds to 6 pcs.

€5.50*

Item number: E8030110129

Details

Mounting set for back release and folding mechanism

- Braided cord Ø 2mm, 0.4m - Braided cord Ø 3mm, 1.5m - Round zip fastener, black, 1pc - Iron clip ST 2, nickel-plated, 4pcs.

€27.70*

Item number: E8000400007

Details
