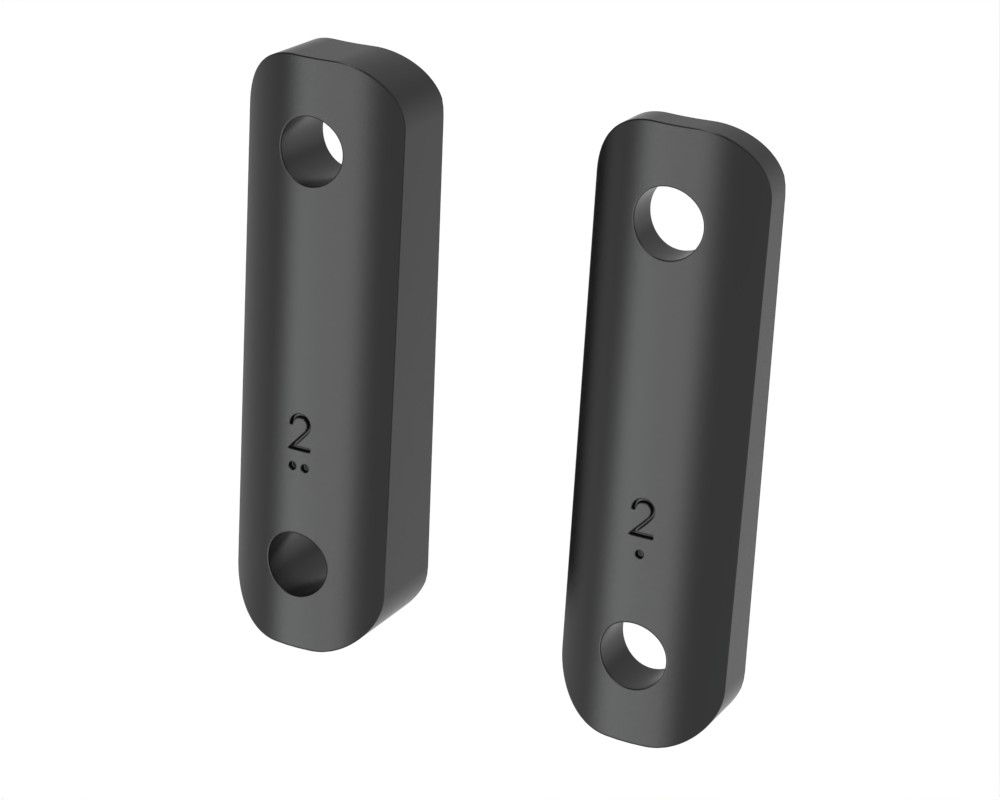

4° Drive Wheel Camber for one-hand drive for wheel plate M27
€47.80*
Includes:
4 pcs. 2° black camber wedges
Mounting screws
Assembly note:
Install the thick alignment wedge at the rear and the narrower alignment wedge at the front, with the thick side facing down!
This means that one thick alignment wedge is required at the rear and one narrow alignment wedge at the front on each side.
The 0° wheel plate insert must be ordered separately.
Item number:
E8041200121-040
6° Drive Wheel Camber for one-hand drive for wheel plate M27
€95.60*
Consisting of:
4 pcs. 6° camber shims (black)
4 pcs. 2° toe shims (black)
Mounting screws
Assembly note:
Install the thick toe-in wedge with a camber wedge at the rear and the narrower toe-in wedge with a camber wedge at the front, with the thick side of each wedge facing down!
This means that one thick toe-in wedge at the rear and one narrow toe-in wedge at the front + two camber wedges are required per side.
The 6° wheel plate insert must be ordered separately.
Item number:
E8041200121-060

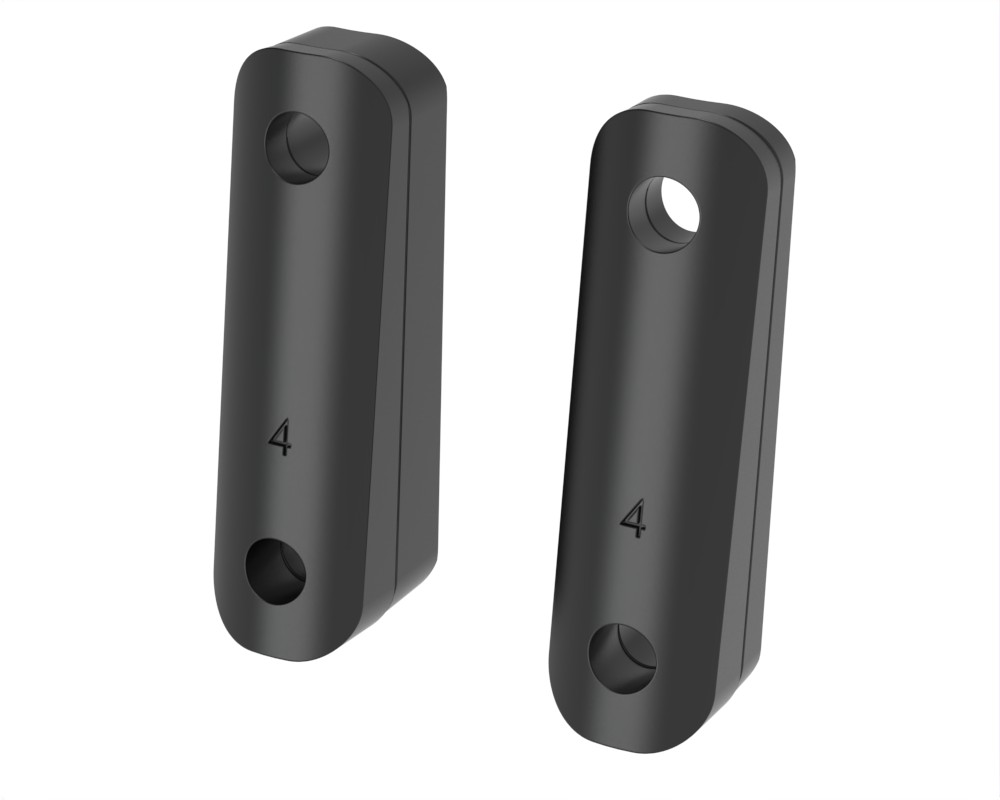

8° Drive Wheel Camber for one-hand drive for wheel plate M27
€95.60*
Includes:
4 pcs. 4° camber shims (black)
4 pcs. 2° toe shims (black)
Mounting screws
Assembly note:
At the rear, mount the wide toe-in wedge with a camber wedge, and at the front, mount the narrower toe-in wedge with a camber wedge, with the thick side of each wedge facing down!
This means that per side, you will need one wide toe-in wedge at the rear and one narrow toe-in wedge at the front, plus two camber wedges.
The 6° wheel plate insert must be ordered separately.
den.
Item number:
E8041200121-080

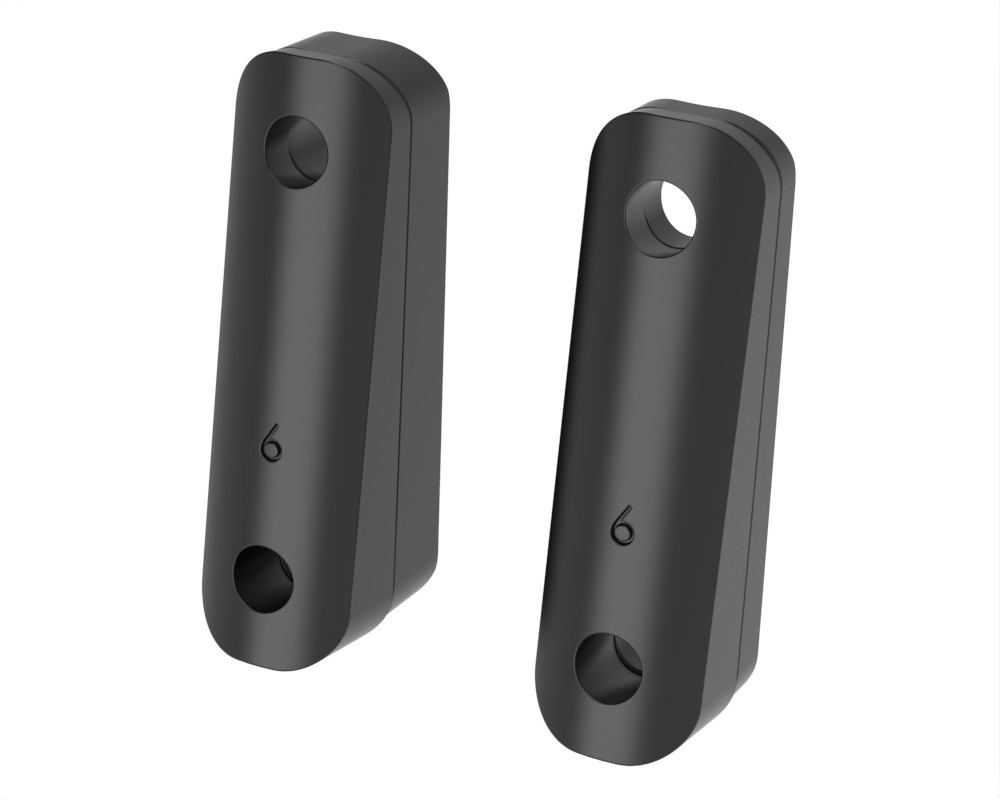

10° Drive Wheel Camber for one-hand drive for wheel plate M27
€95.60*
Includes:
4 pcs. 6° camber shims (black)
4 pcs. 2° toe shims (black)
Mounting screws
Assembly note:
Install the thick toe-in wedge with a camber wedge at the rear and the narrower toe-in wedge with a camber wedge at the front, with the thick side of each wedge facing down!
This means that one thick toe-in wedge at the rear and one narrow toe-in wedge at the front + two camber wedges are required per side.
The 6° wheel plate insert must be ordered separately.
Item number:
E8041200121-100
