consisting of:
Handle shell (1100600013) with holder (1100600015)
right and left
2x pan-head screw M8x35
2x toothed disc M8
2x washer M8
Item E8100600065 is also required for retrofitting.
Battery for Shimano DI2 shifting systems
*****Dangerous materials notice: UN 3480, lithium-ion batteries, 9, (E); Packaging: 4G box, cardboard; Quantity per transport category: 1 kg = 4 points (value) *****
When converting to the stick battery, the following additional parts are required:
- Charger for stick battery Di2
- stick battery Di2 battery holder
consisting of:
- Bracket ø22mm for display unit
with fixing screw M5x25 and washer 5mm DIN440
- Bracket for signalling device with fastening screw M5x12 ISO7380
Handle width 45cm with standard crank
Handle width 53cm with Tetra pedal crank

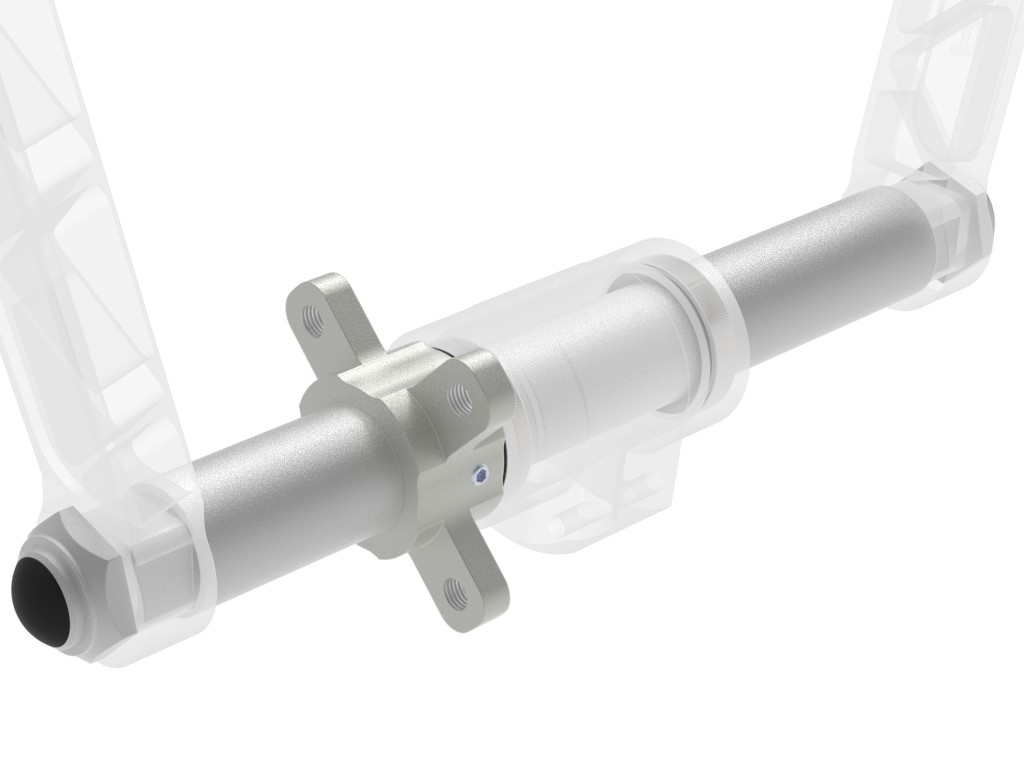

Scope of delivery:
Bottom bracket shaft with spider 4-hole (bolt circle Ø64 / Ø104mm 4x90°), spacers, ball bearings and nuts aluminium M20x1.5mm
for hydraulic disc coaster brake
incl.
slave piston

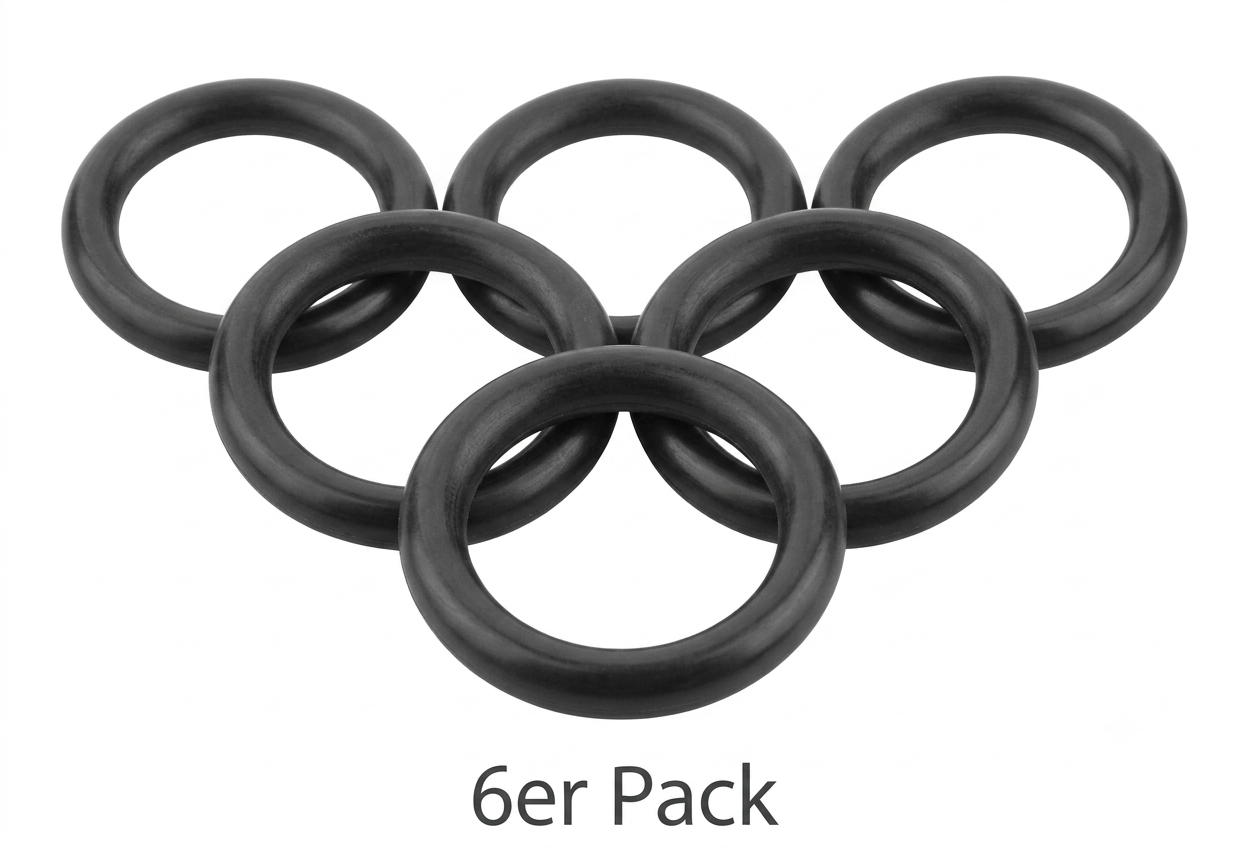

O-rings
Sealing discs
Spring pin and compression spring
Assembly instructions
E8116300000 Bleeding set BFO coaster brake required

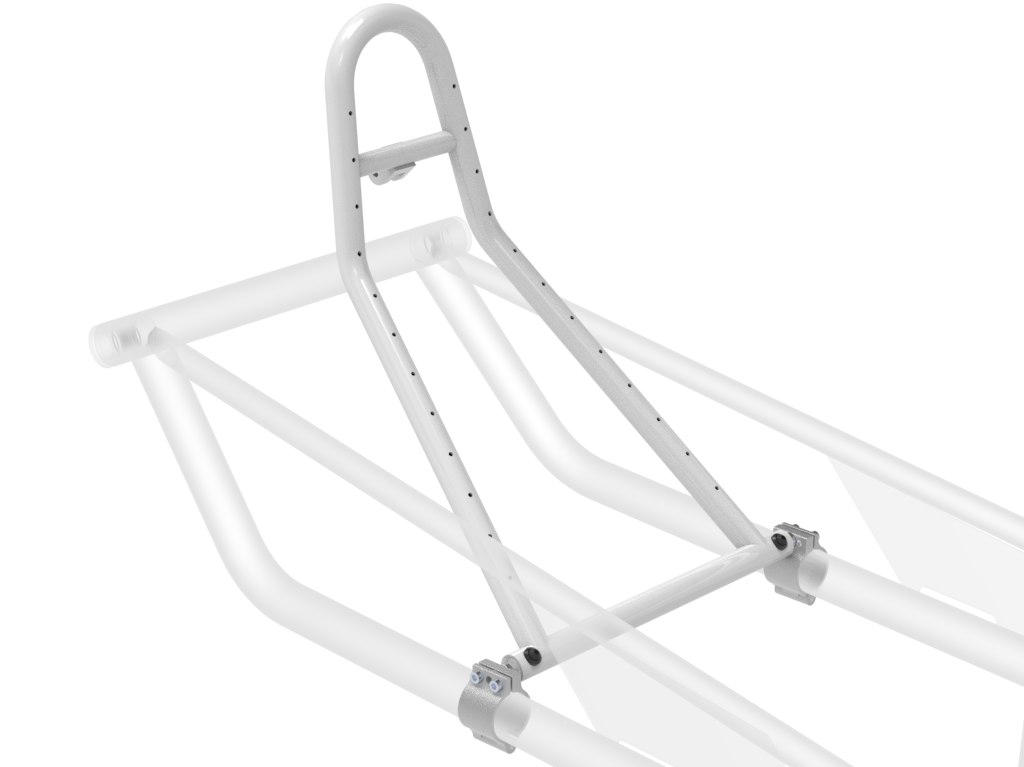

with mounting material for attachment to the Ø40mm frame tubes.
- Powder-coated in frame colour
- incl. holes for Body Contour or filler panel
(please make your choice!)
1100800010
