consisting of:
- Bracket ø22mm for display unit
with fixing screw M5x25 and washer 5mm DIN440
- Bracket for signalling device with fastening screw M5x12 ISO7380
Colour: black
Max. Max. load weight 10kg on the loading platform,
max. 15kg in conjunction with panniers at lower loading height.
- Holder for luggage rack on adaptive bike long version 220mm
(depending on equipment, 180mm version also possible with hub gears)
Fastening screws:
- 2 x M6x25 cheese head screws for standard fastening
- 2 x M6x30 cheese head screws for fastening with battery retaining rail
- 2 M6 nuts and B6 washers

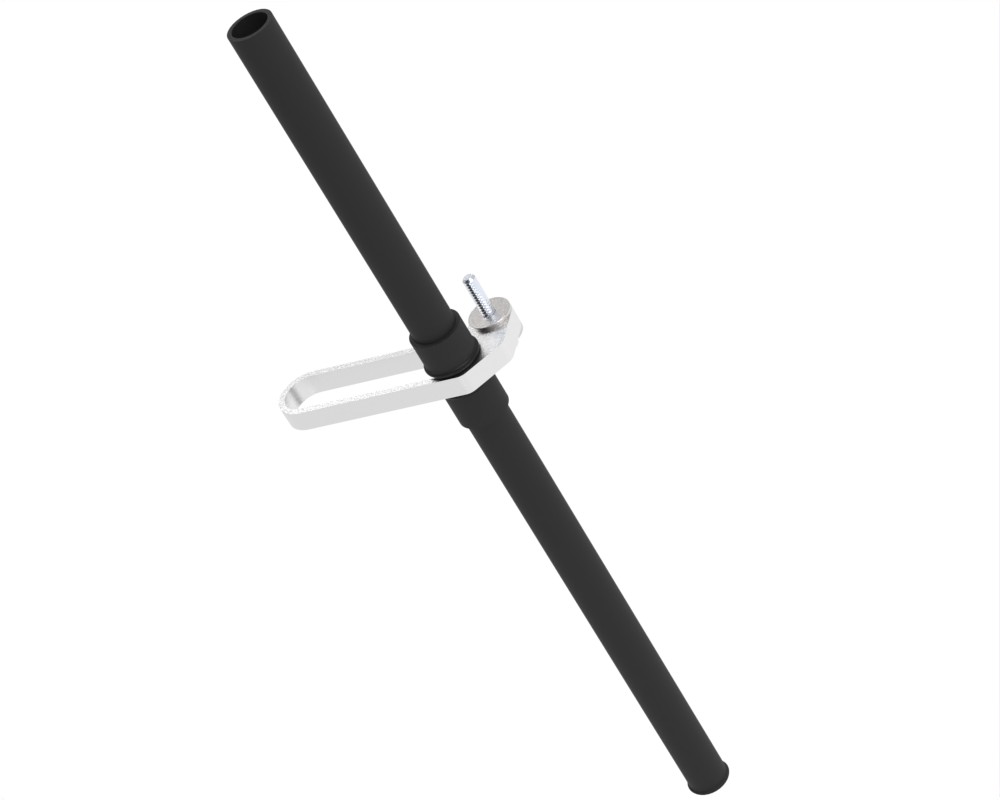

with foam rubber cover, incl. 2x cylinder screw M5 x 20 DIN 912; not suitable for el. bikes with bottom bracket sensor for BionX IGH2 / IGH3.
Please note:
Two M5 threaded holes must be drilled in the existing chain guard for installation.
Sturdy aluminium mudguard for mounting on
brake anchor for the V-brake.
UDS black coated (not glossy)
For mounting, the M6 of the brake anchor must be
centred above the wheel, must be drilled out to Ø 6.3.
Sturdy aluminium mudguard for mounting on
brake anchor for the V-brake.
Choice of colours from colour palette Single colour design
Powder colours wheelchair
Farbe: _________________________
Due to the customised coating, the delivery
may extend the delivery time by 1 to 2 weeks.
For installation, the M6 of the brake anchor must be
centred above the wheel, must be drilled out to Ø 6.3.
