Bottom bracket support

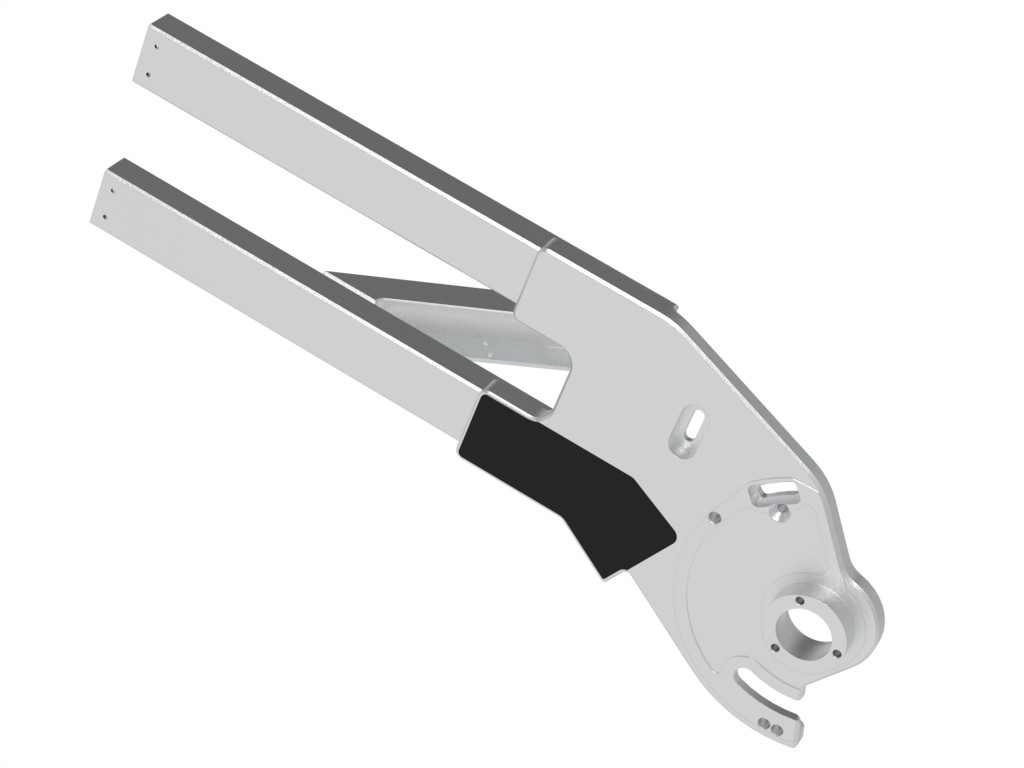

Bottom bracket support right

with black decor and a tube length of 230 mm without chain guide shoe, guide roller and grid insert

€419.50*

Item number: E8117500027

Details

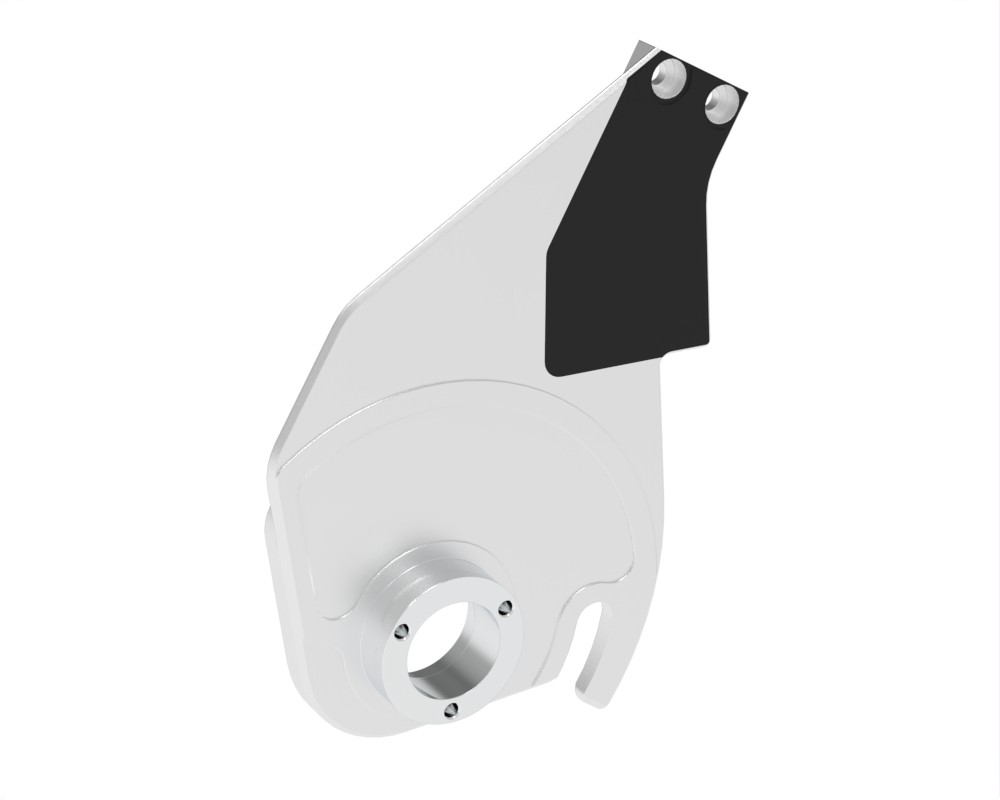

Swivel distance left

with black decor

€140.40*

Item number: E8117500004

Details

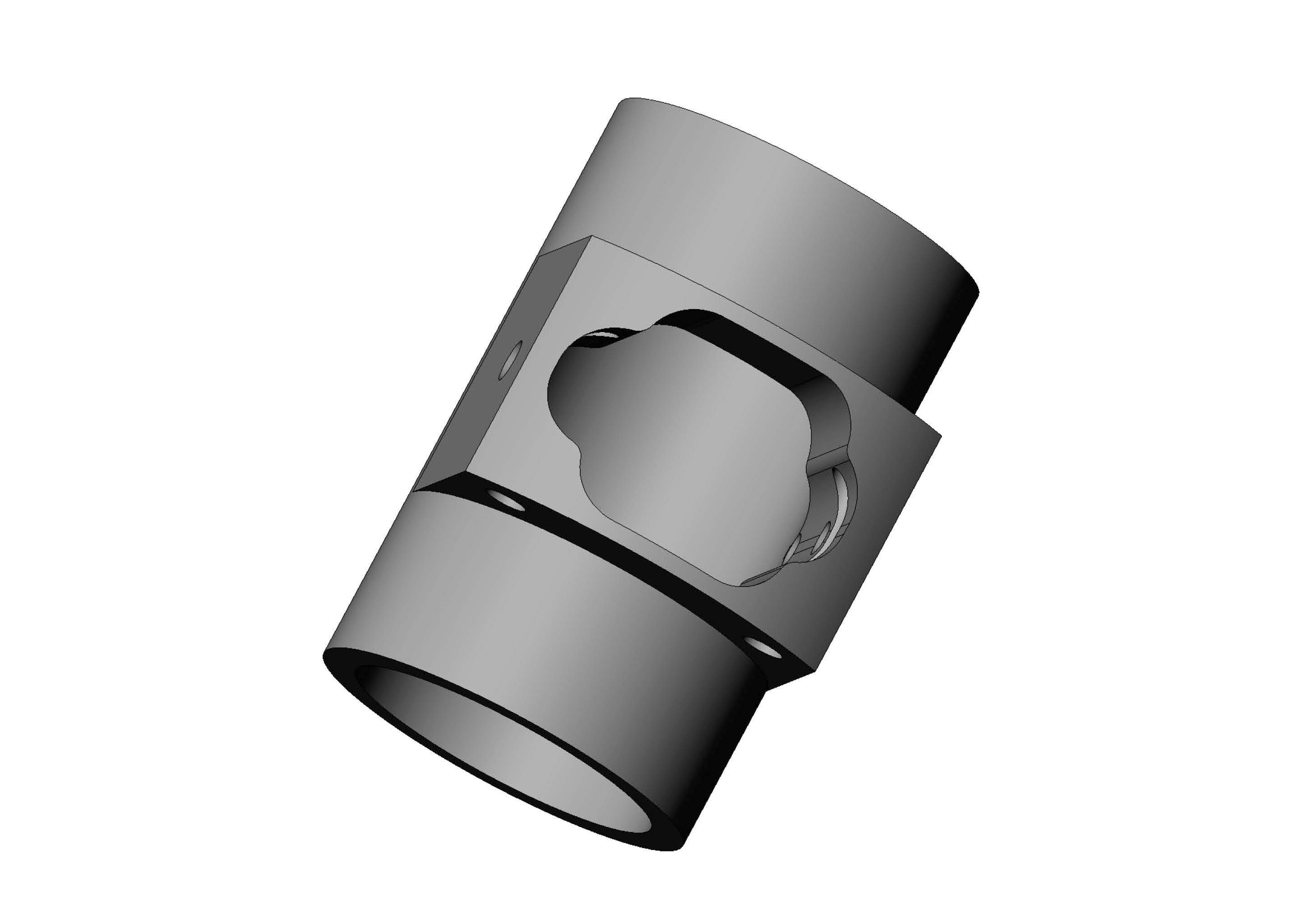

Bottom bracket shell for fixed Bottom bracket support

Not suitable for NJ1 with BionX IGH2 / IGH3 drive!

€87.10*

Item number: E8100500003

Details

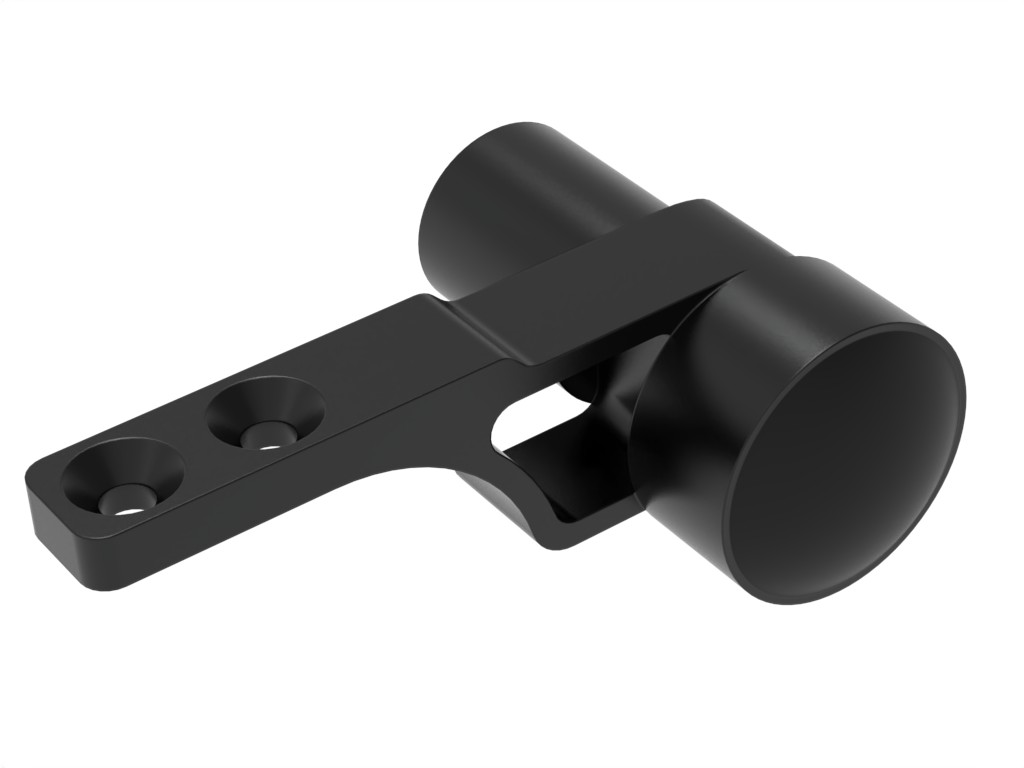

Control panel bracket

zur Befestigung am Tretlagergehäuse. Geeignet zur Aufnahme eines Displays mit Ø31,8mm und eines Tasters mit Ø22mm. Bestehend aus: 1x Halterung Bedienelement 2x M5x12 Senkkopfschrauben

€81.60*

Item number: E8117400012

Details

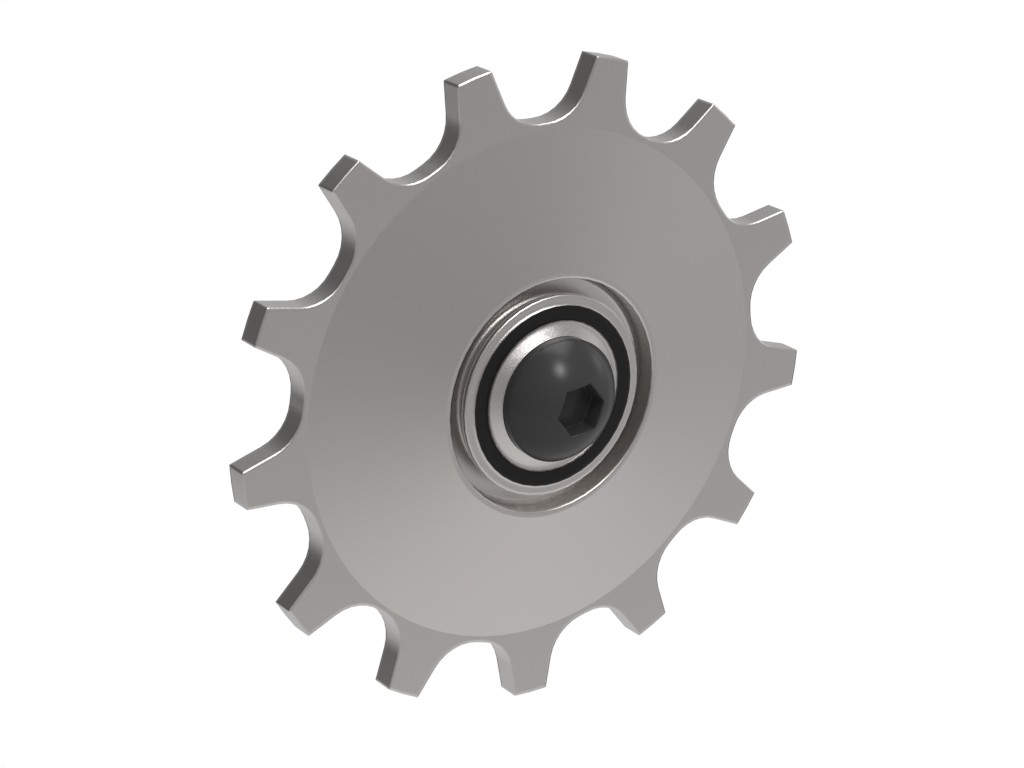

Tensioning element for upper chain

Small guide roller for tensioning the upper chain. Incl. all mounting materials

€30.80*

Item number: E8117500000

Details

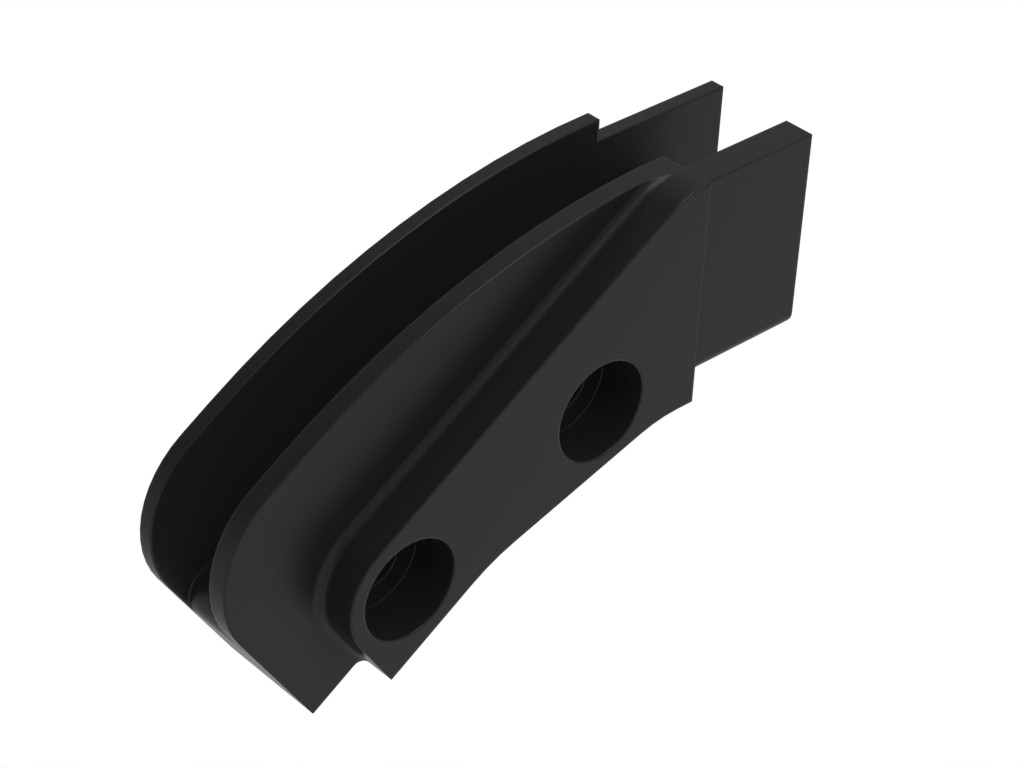

Chain guide shoe, bottom

Kettenführungsschuh nahe am Motor für die obere Kette. Wird in das untere Kettenführungsrohr gesteckt und mit zwei Zylinderkopfschrauben befestigt. Farbe: weiß Bestehend aus: 1x Kettenführungsschuh 2x Zylinderschraube M5x16

€33.20*

Item number: E8117500008

Details

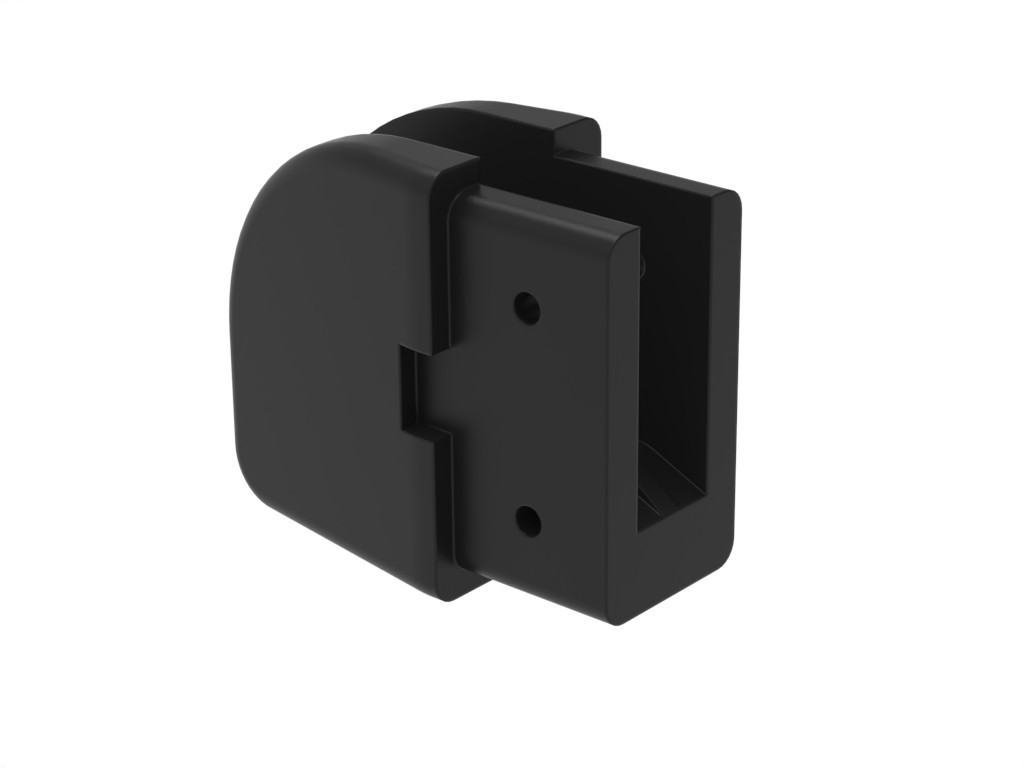

Chain guide rectangular tube

Kettenführung für das obere Ende der Rechteckrohre. Dient dem klapperfreien Führen der Kette im Rohr. Farbe: schwarz

€29.50*

Item number: E8117500010

Details

Locking bolt stainless steel M12x1.5

Detent bolt for positioning the bottom bracket support. Total length 40.8mm made of stainless steel

€56.10*

Item number: E8117400030

Details

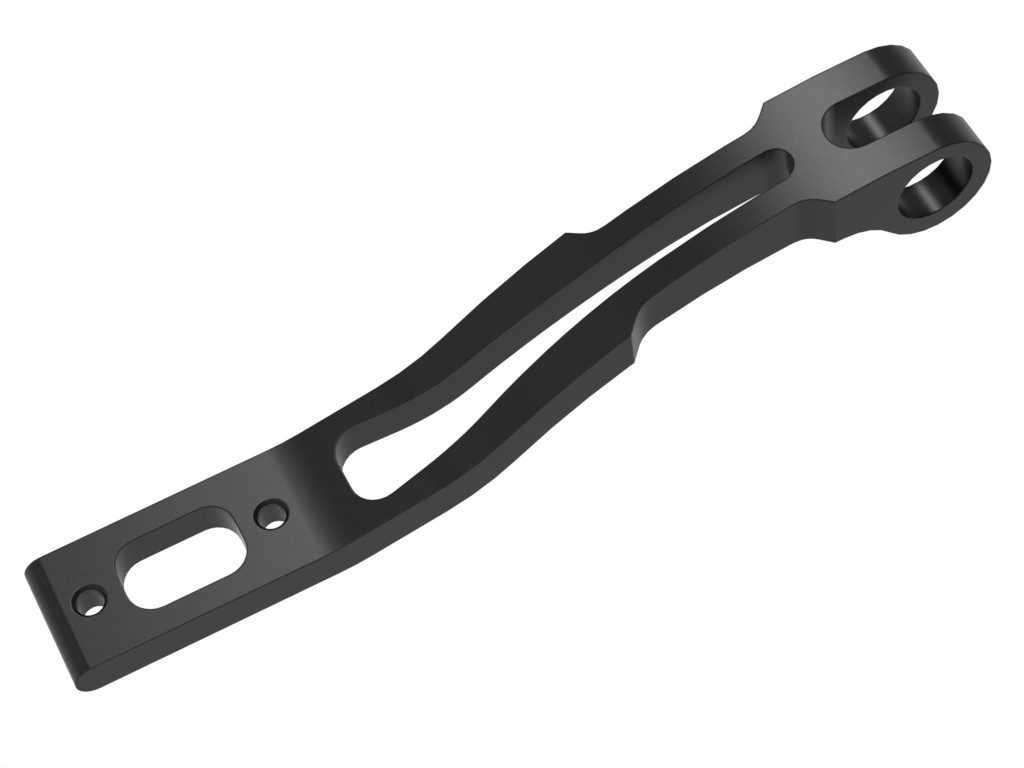

Bottom bracket support clamping lever

Clamping fork for fixing the bottom bracket support in the riding position black anodised

€32.20*

Item number: E8117400100

Details

Clamping element fixing the bottom bracket support

Clamping element for fixing the swivelling bottom bracket support in the riding position. Consisting of: Clamping screw, conical compression spring, pivot point eccentric clamp, clamping disc eccentric clamp and eccentric clamping lever (black anodised)

€111.80*

Item number: E8117400110

Details

Clamping disk eccentric clamp for clamping element bottom bracket support

consisting of: - Conical compression spring - Clamping disk Eccentric clamp - grub screw

€18.50*

Item number: E8117400102

Details

Clamping screw and clamping washer for clamping element bottom bracket support

consisting of: - clamping screw - conical compression spring - clamping washer eccentric clamp - threaded pin

€45.50*

Item number: E8117400101

Details

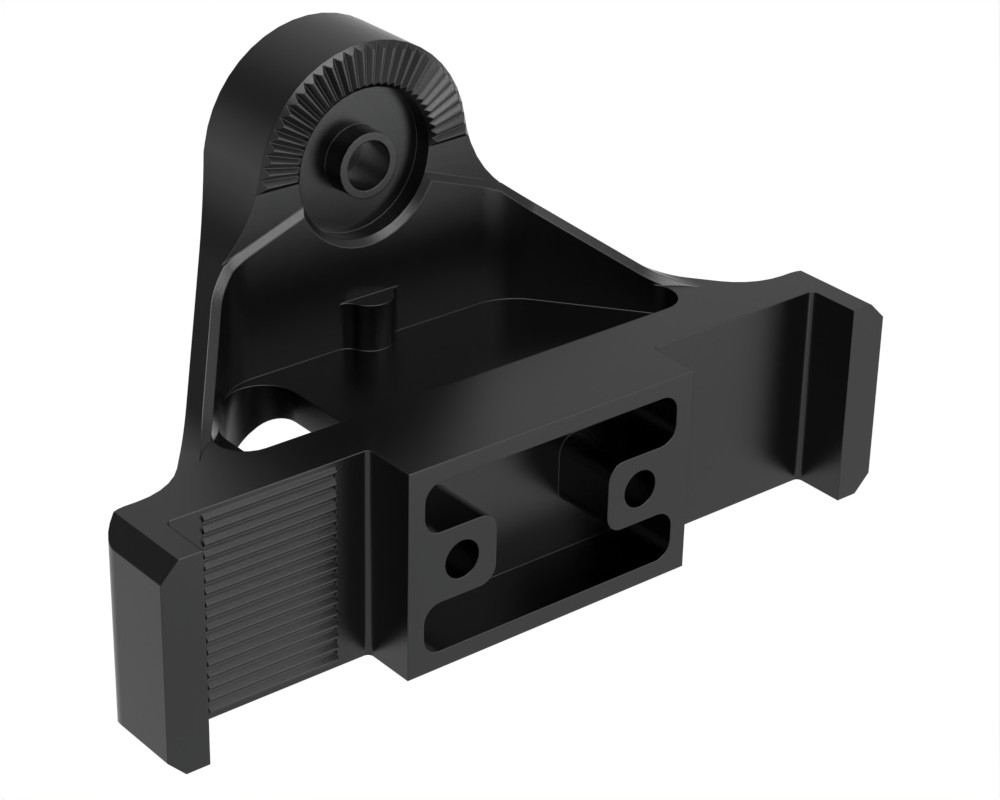

Base holder bottom bracket

For mounting the adjustable bottom bracket spacer on the rectangular tubes of the bottom bracket support. black anodised

€185.60*

Item number: E8117500019

Details

Bottom bracket clamping element

For mounting the adjustable bottom bracket spacer on the rectangular tubes of the bottom bracket support. black anodised

€56.40*

Item number: E8117500018

Details

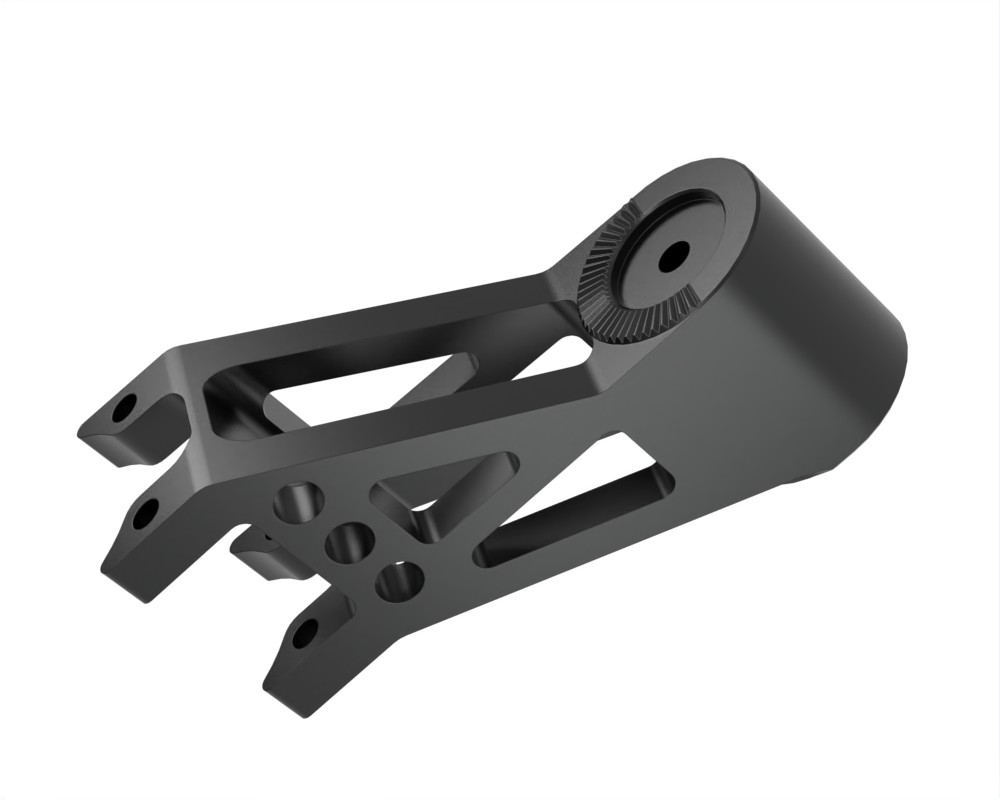

Adjustable bottom bracket distance

For mounting the bottom bracket shell between the base bracket and the clamping element. (Dimension bottom bracket centre to toothed axle 115mm) black anodised

€131.50*

Item number: E8117500020

Details

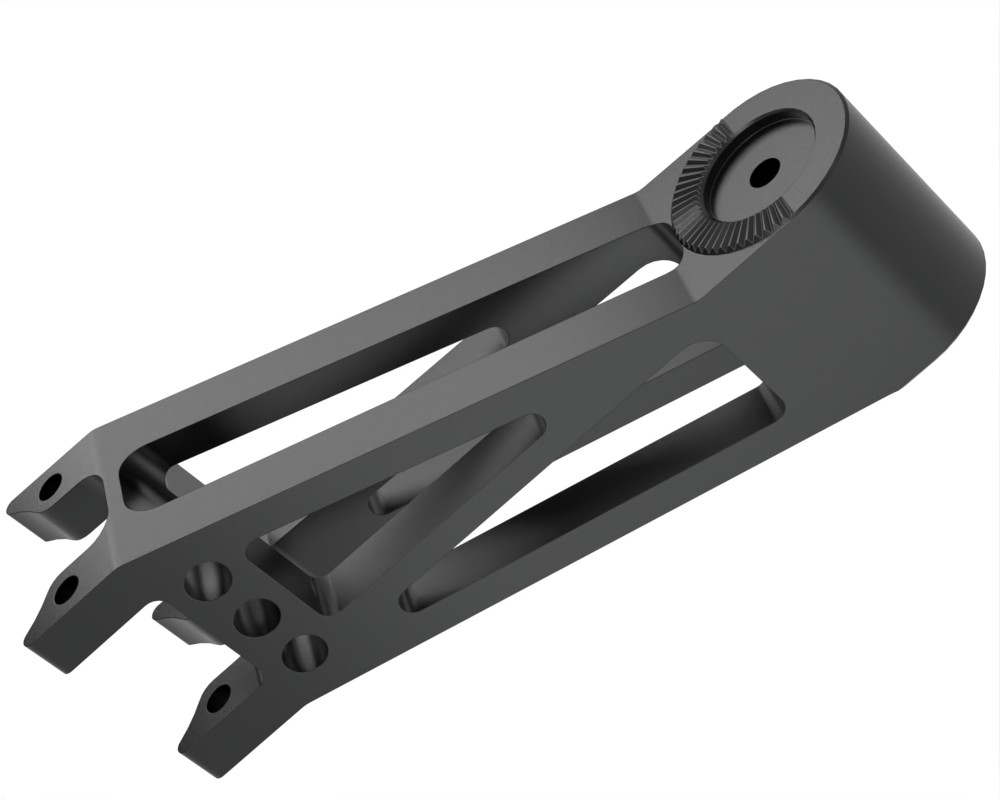

Distance bottom bracket adjustable long,

+50mm longer version for higher or more rearward crank positions. For mounting the bottom bracket shell between the base bracket and the clamping element. (Dimension bottom bracket centre to toothing axle 165mm) black anodised

€238.50*

Item number: E8117500046

Details

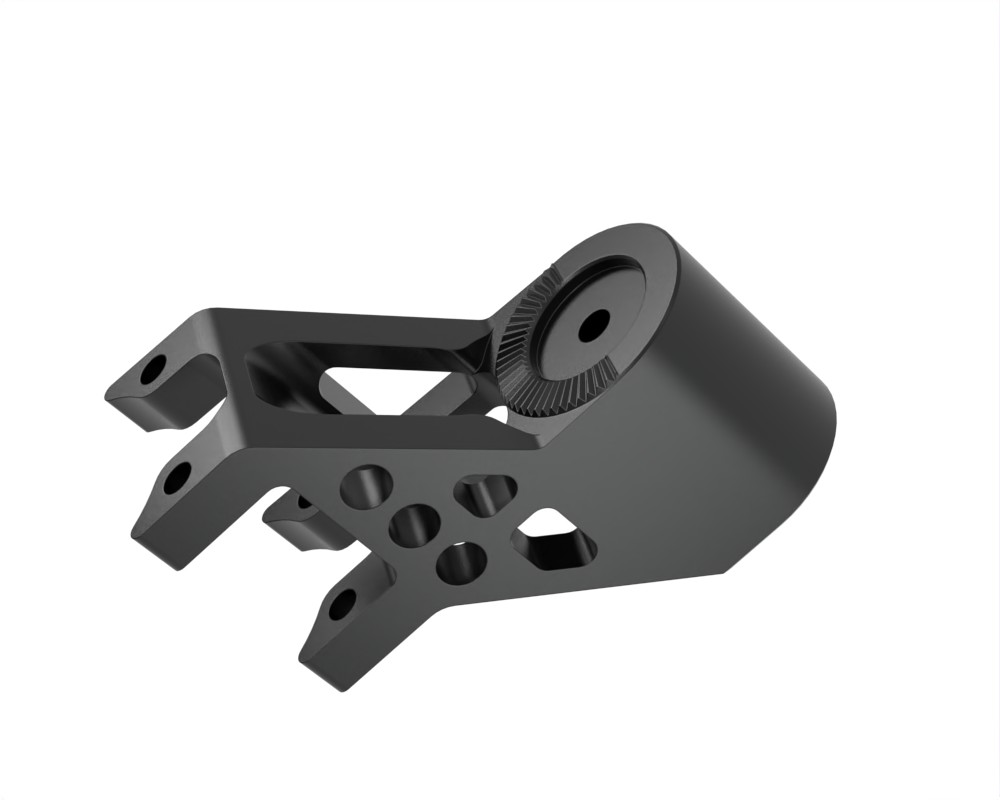

Distance bottom bracket adjustable short

30 mm shorter version for lower crank positions. For mounting the bottom bracket shell between the base bracket and clamping element. (Dimension from bottom bracket center to gear axis 85 mm) Black anodized

€238.50*

Item number: E8117500047

Details

Grid insert

for positioning the bottom bracket support in the riding position. incl. retaining screw

€19.40*

Item number: E8117500012

Details

Coil spring cover protection

Strain relief spring 160mm long for gluing into the triple cable holder of the NJ1 or into the crankshaft spacer of the Husk-e. Superglue should be used to glue in the spring.

€5.70*

Item number: E8100200144

Details
