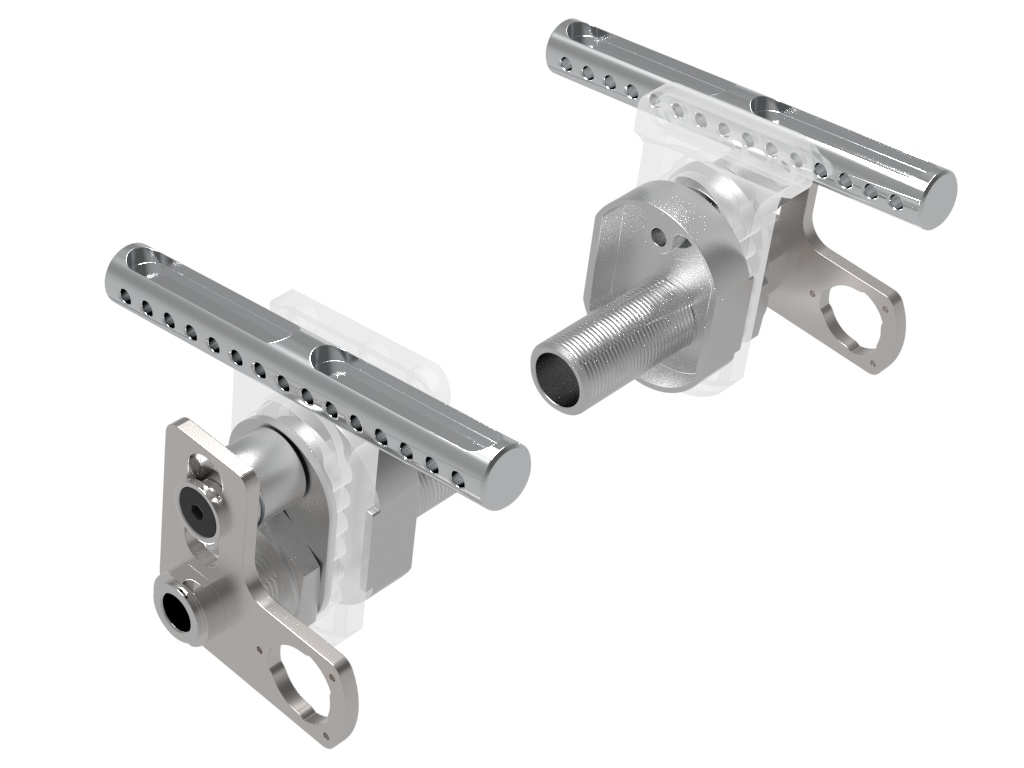

Retrofit kit for mounting e-fix 1°
€519.80*
Sales unit: set
Item number:
E8016200500
Product information "Retrofit kit for mounting e-fix 1° "
consisting of:
2 drive wheel bushes M27/ 16x1 camber1°
2 drive wheel bushes 1/2" M16x1 L=50.7mm
2 pcs. nut M27 SW41mm
2 pcs. adjusting element for fastening the torque arm (included).
2 pcs. M8 ISO 7991,
2 pcs. positioning link
2 pcs. counterholder M8 for positioning link
2 aluminium spacers ø25xø8x7mm.
2 spacers 20mm for brake bolt spacing
2 pcs. fixing screw M5x30 DIN 912
(Regarding wheel camber, the approval of Alber applies:
E-fix: up to 60kg: 3°; over 60kg: 1°
E-motion: up to 40kg: 9°; up to 60kg: 6°; up to 100kg: 3°;
over 100kg: 1°)
With assembly instructions: 8016200500-002.PDF
2 drive wheel bushes M27/ 16x1 camber1°
2 drive wheel bushes 1/2" M16x1 L=50.7mm
2 pcs. nut M27 SW41mm
2 pcs. adjusting element for fastening the torque arm (included).
2 pcs. M8 ISO 7991,
2 pcs. positioning link
2 pcs. counterholder M8 for positioning link
2 aluminium spacers ø25xø8x7mm.
2 spacers 20mm for brake bolt spacing
2 pcs. fixing screw M5x30 DIN 912
(Regarding wheel camber, the approval of Alber applies:
E-fix: up to 60kg: 3°; over 60kg: 1°
E-motion: up to 40kg: 9°; up to 60kg: 6°; up to 100kg: 3°;
over 100kg: 1°)
With assembly instructions: 8016200500-002.PDF
